Typical Results

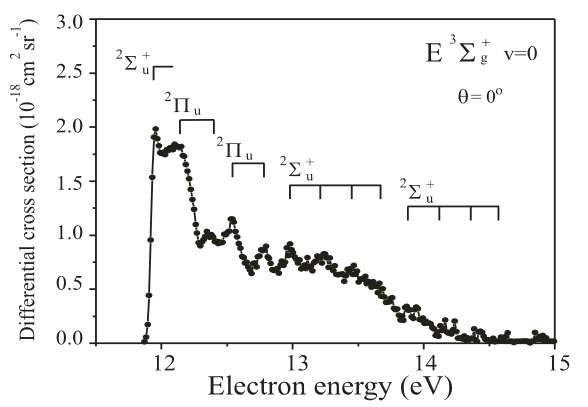

 Differential cross section at 0° for excitation v=0 vibrational level of the E 3S+g state of N2 |
|
|

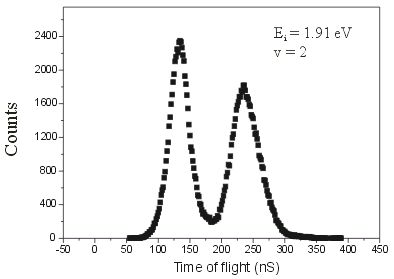

Time-of-flight spectrum of electrons scattered at 0° and 180° at incident energy of 1.91 eV from the v=2 level excitation via 2P resonance in CO. |
|

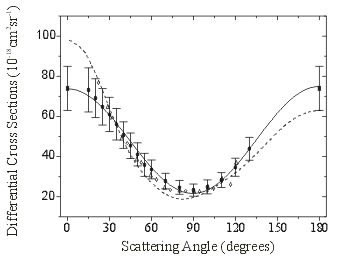

Angular distribution of electrons from 2P resonant excitation of CO at 1.91 eV. Points at 0° and 180° are our data. Closed circles are data of Gibson et al. Open circles are data of Ehrhardt et al. and triangles of Tronc et al. The solid curve is the fit by Read`s theory and the dashed curve Morgan`s theory. |
